(manufacturer) Powder Coated Twin Wire Welded Mesh /Double Wire Mesh Fence Panels
Double wire mesh fence also called twin wire mesh fence, it is extremely rigid mesh fence system with a flat appearance, double horizontal wire 5mm or 6mm welded to 66mm, mm, vertical wire so often referred to as 656 fences and 868 mesh fence .T he double wire mesh fence often used as a premier fence for a school playground ,industry fencing where the conditions a rather strong mesh system is Indispensable.T he double wire mesh fence take high quality low carbon steel wire as raw materials compared with the traditional mesh fence it with rather stronger wire diameter 6mm/5mm/6mm and 8mm/6mm/8mm.
| Welded Double Mesh Fence |
| Fence Panel | Wire Diameter (Common Wire Type) | 8/6/8mm, 6/5/6mm, 5/4/5mm, and material is Q195, Q235 |
| Mesh Size | 50*200mm /55*200mm/50*150mm/55*100mm, can be customized |
| Panel height | From 0.4m - 3.03m |
| Panel Width | 2.0m, 2.5m as standard |
| Surface Treatment | Hot-dipped Galvanized then PVC coating Electric Galvanized then PVC coating Hot-dipped Galvanized |
| Fence Post | Dimensions of Type | Rectangle post/Rectangle post/Peach post/Round post, material is Q195-Q235, most common is 60x40mm post: Post (4 options with different sections)
•60x60mm and 50x50mm SHS steel Post
•40x60mm RHS steel post
•50x70 and 70x100 Peach shape post
•48mm and 60mm Round section post |
| Surface Treatment | Hot-dipped Galvanized then PVC coating Hot-dipped Galvanized |
| Fence Accessories | Clips/Clamps (Link Post and Panel) | Metal Clips and Plastic Clips, there are over 6 type as choice |
| Rainhat or caps for posts | Metal caps or plastic caps |
Twin Wire Mesh Fence Post Option
Twin wire mesh fence system usually take 40 x 60 x 2.00mm ,50x50x 2.00mm ,60x60x2.00mm post and
for heavy duty 868 twin wire mesh fence for stand heavier weight, we often recommend customer to take
80x60x2.5mm, 80x80x2.5mm,120*60*3mm post to stand premier heavy works.All of list size post required the fastener system for secure mesh fence panel together with a fence post, it generates so much
Works when customer install fence in local, so the new style post is peach size post which the post size is
50 x 70 and 70 x 100mm the special mesh fence post required nothing for fasteners such as bolts, nuts, clamps, bar etc its called peach post.

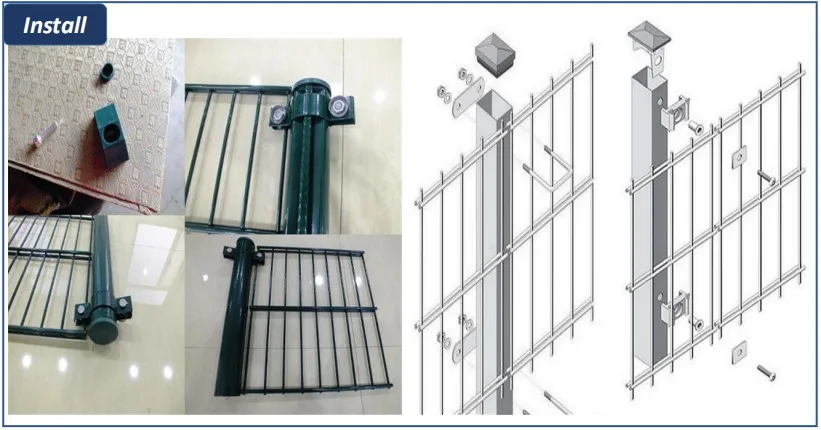

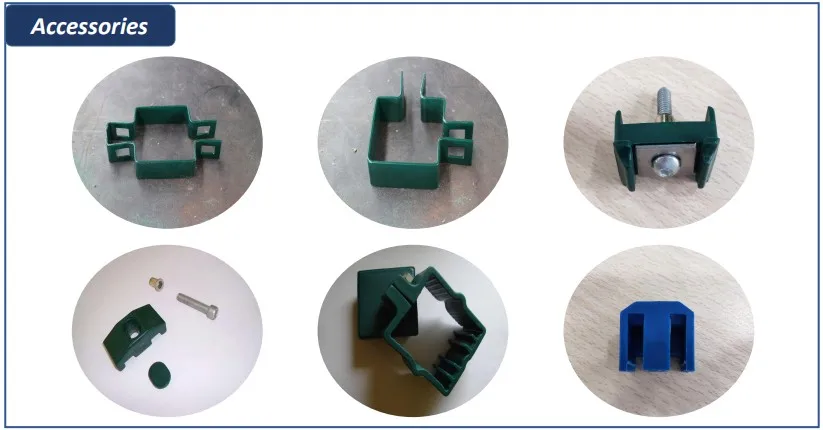

Fastener System and Accessories
Square and rectangular Post: Required Clamp Bar Bolts Nuts or Clips Bolts Nuts and Post Cap
Peach Post: Required nothing

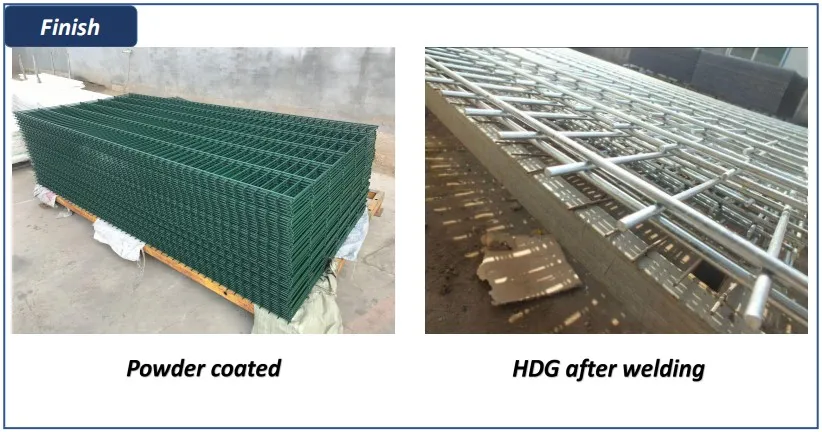

Surface Treatment of Double Wire Mesh Fence
Double wire fence surface treatment available galvanized with PVC powder coating and galvanized with PVC powder painting the Galvanized level often regard as Electro Galvanized and Hot Dipped Galvanized
The electro galvanized level 20gram/square meter and hot dipped galvanized double mesh fence zinc level
Is 60gram-600gram/square meter .
Specification of Twin Wire Mesh Fence
Double wire mesh fence has a rather wider range height so at the daily using the standard mesh fence can stand almost all circumstance.
| Height X Length(mm) | Mesh Opening(mm) | Dia(mm) | Dia(mm) | Fence Length (mm) |
| 630x2500 | 50x200 | 8x2+6 | 6x2+5 | 1100mm |
| 830x2500 | 50x200 | 8x2+6 | 6x2+5 | 1300mm |
| 1030x2500 | 50x200 | 8x2+6 | 6x2+5 | 1500mm |
| 1230x2500 | 50x200 | 8x2+6 | 6x2+5 | 1700mm |
| 1430x2500 | 50x200 | 8x2+6 | 6x2+5 | 1900mm |
| 1530x2500 | 50x200 | 8x2+6 | 6x2+5 | 2000mm |
| 1630x2500 | 50x200 | 8x2+6 | 6x2+5 | 2100mm |
| 1730x2500 | 50x200 | 8x2+6 | 6x2+5 | 2200mm |
| 1830x2500 | 50x200 | 8x2+6 | 6x2+5 | 2300mm |
| 2030x2500 | 50x200 | 8x2+6 | 6x2+5 | 2500mm |
| 2230x2500 | 50x200 | 8x2+6 | 6x2+5 | 2700mm |
| 2430x2500 | 50x200 | 8x2+6 | 6x2+5 | 2900mm or 3000mm |

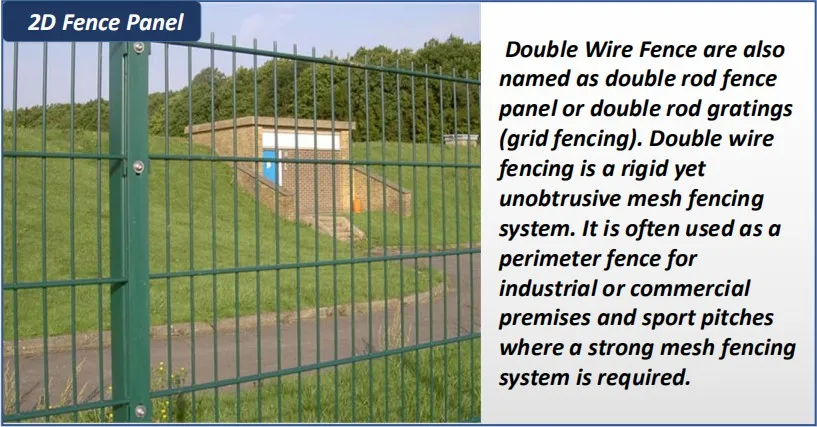

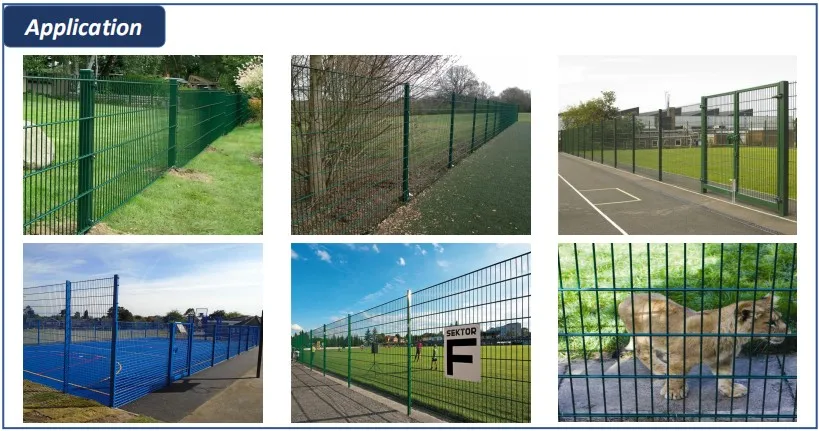

The double wire fence is a rigid yet unobtrusive mesh fencing system. It is often used as a perimeter fence for industrial or commercial premises and sports pitches where a strong mesh fencing system is required.
The inherent strength within the panels is gained by sandwiching a 6mm vertical wire between two 8mm horizontal wires. This ensures that the heavy-duty panels offer extremely high resistance to vandalism. 868 panels are then fixed to strong rolled hollow section posts using stainless steel security fixings and a full-length clamp strip. 868 is available 1030, 2030, 2430, 3060, 4060 and 4870mm high and a full range of single, double and sliding gates are available to match.
Posts: Set at 2520mm nominal centres.
Up to 2430mm high - 60 x 40 RHS
3060mm high - 80 x 40 RHS
4060mm high - 100 x 50 RHS
4870mm high - 120 x 60 RHS
Fixings: Posts nutserted to receive stainless steel
fixings and full length clamp strip.
Finish: Hot Dip Galvanised to BS EN ISO 1461 or
Galvanised & Polyester Polyester Powder Coated.
